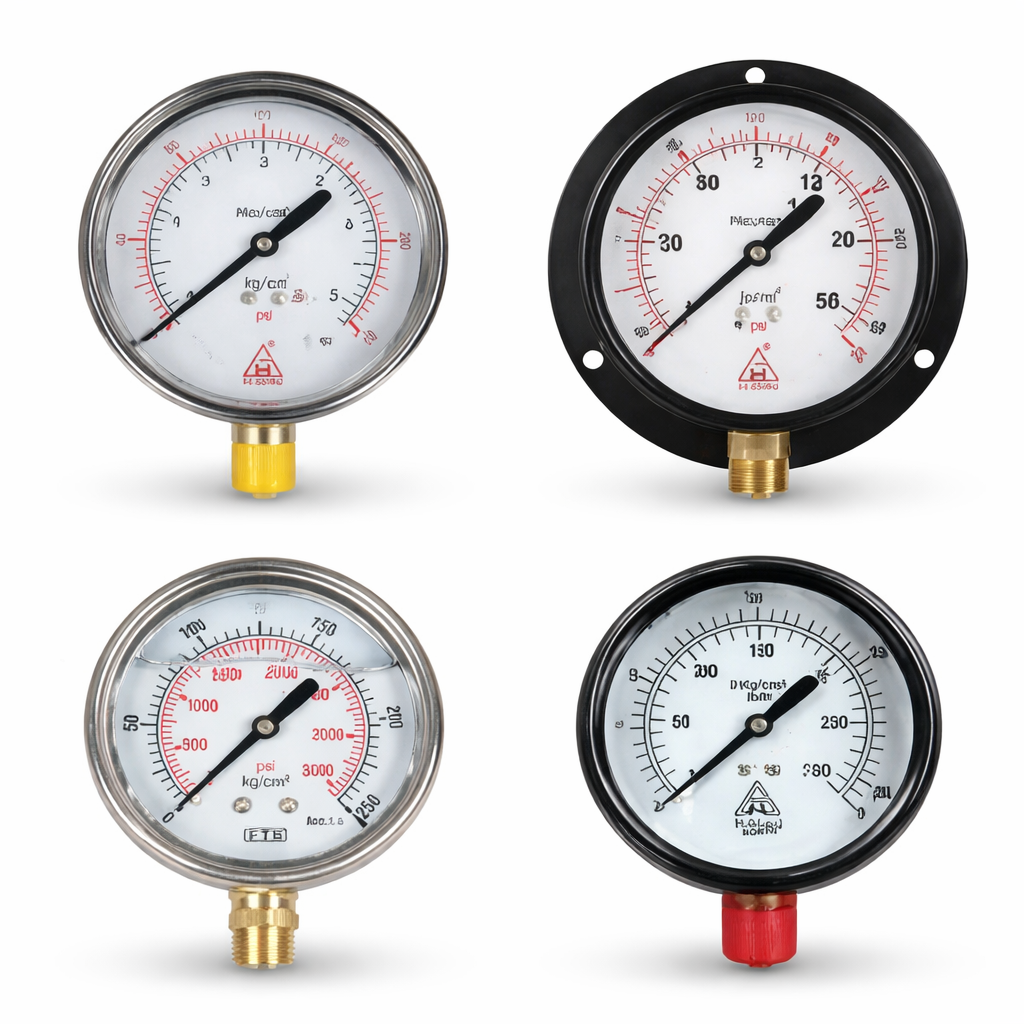

Pressure Gauge 2.5 Inch 42 kg/cm² SSNF BCPM 1/4″ BSP – Industrial Hydraulic Pressure Monitoring Solution
The Pressure Gauge 2.5″ 42 kg/cm² SSNF BCPM 1/4″ BSP is a high-precision industrial pressure measuring instrument designed for hydraulic, pneumatic, and industrial fluid systems. Built with stainless steel non-filled (SSNF) construction, this gauge ensures durability, corrosion resistance, and long operational life in demanding industrial environments.
With a 2.5-inch dial size, clear markings, and a pressure range up to 42 kg/cm², this gauge provides accurate and easy-to-read pressure monitoring for hydraulic power packs, compressors, pumps, and industrial machinery.
🔧 Technical Specifications
-
Dial Size: 2.5 Inch (63 mm)
-
Pressure Range: 0 – 42 kg/cm²
-
Connection Size: 1/4″ BSP
-
Mounting Type: Bottom Connection (BCPM – Bottom Connection Panel Mount)
-
Body Material: Stainless Steel
-
Type: SSNF (Stainless Steel Non-Filled)
-
Application: Hydraulic & pneumatic systems
-
Thread Type: BSP (British Standard Pipe)
⭐ Key Features & Benefits
✔️ Accurate Pressure Measurement
Designed for reliable and precise pressure monitoring in hydraulic systems.
✔️ Stainless Steel Construction
Provides excellent corrosion resistance and durability in industrial conditions.
✔️ Clear & Easy-to-Read Dial
2.5″ dial ensures visibility from a safe working distance.
✔️ Standard 1/4″ BSP Connection
Compatible with most hydraulic and pneumatic installations.
✔️ Suitable for Panel Mounting
BCPM configuration allows secure installation in control panels and machinery.
🏭 Applications
-
Hydraulic Power Packs
-
Industrial Pumps
-
Air Compressors
-
Pneumatic Systems
-
Oil & Fluid Lines
-
CNC & Industrial Machinery
-
Manufacturing Plants
Suitable for:
-
Factory Maintenance Teams
-
Hydraulic Technicians
-
OEM Machine Builders
-
Automation Engineers
⚠️ Installation & Safety Guidelines
-
Ensure correct pressure range selection before installation.
-
Do not exceed maximum pressure rating (42 kg/cm²).
-
Use proper thread sealing (PTFE tape or sealant) for leak-free installation.
-
Avoid vibration-heavy environments unless vibration-resistant mounting is used.
-
Install vertically for best accuracy.
🔍 Why Choose This Pressure Gauge?
-
Industrial-grade stainless steel body
-
Reliable and durable performance
-
Easy compatibility with standard BSP fittings
-
Ideal for Indian industrial environments
-
Cost-effective hydraulic monitoring solution
