Description

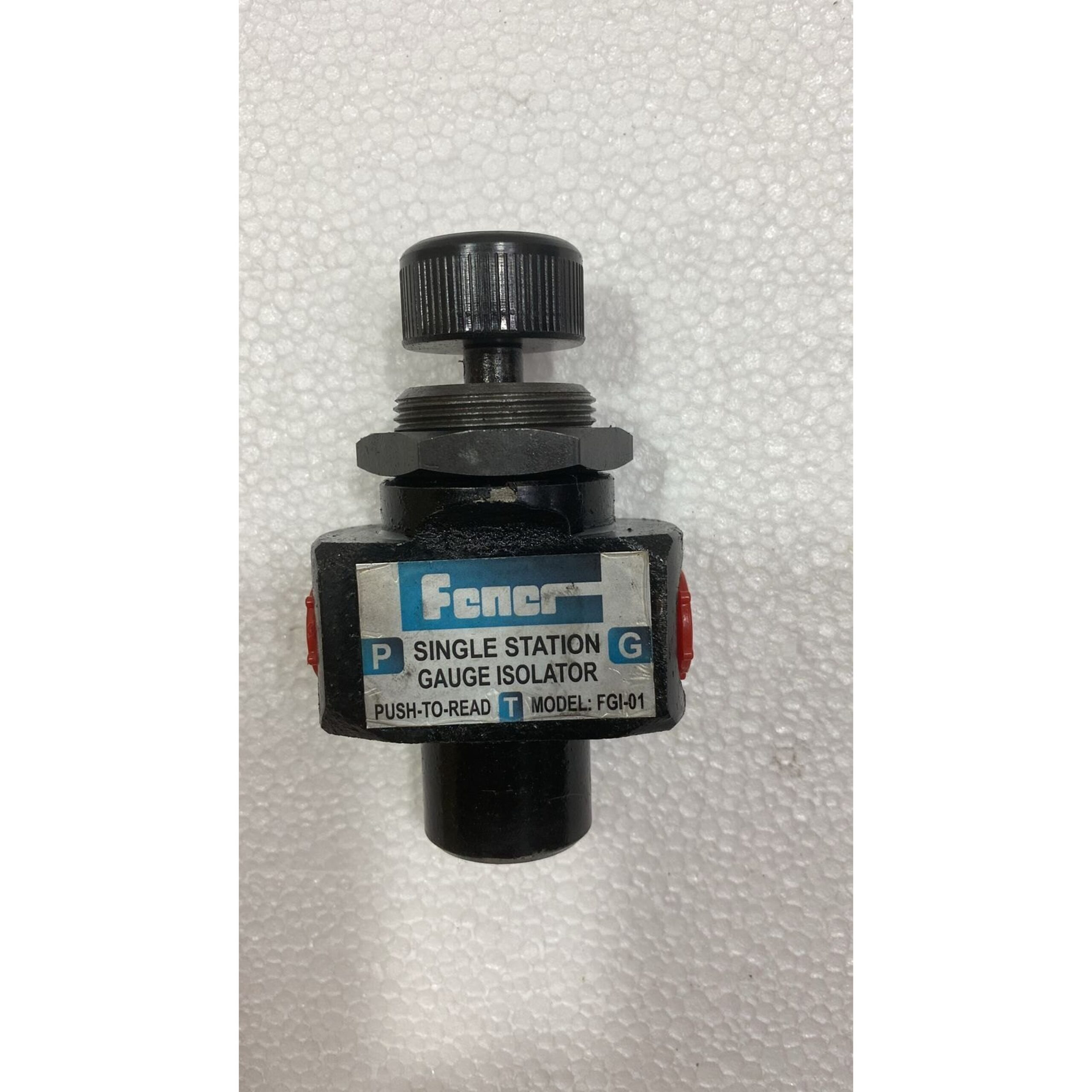

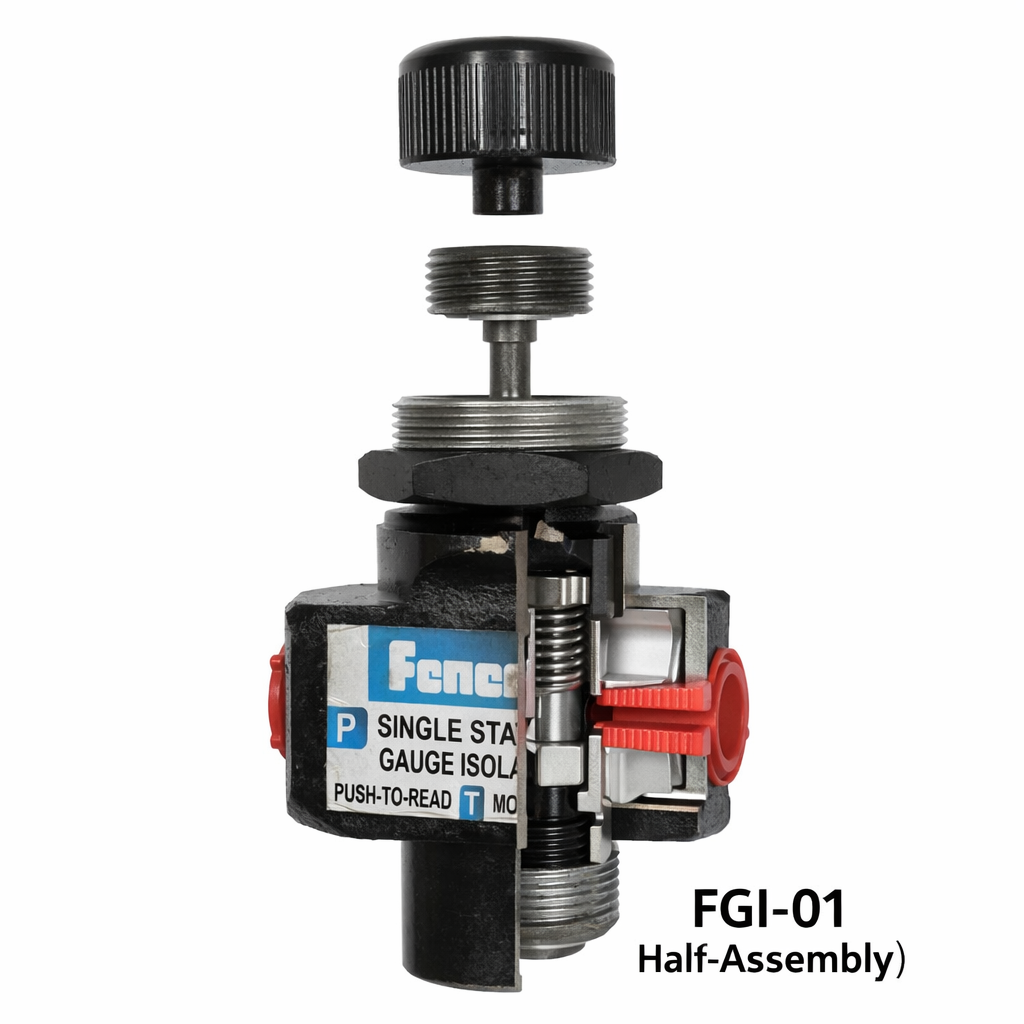

The FGI-01 Push to Read Gauge Isolator by Fener is designed to protect pressure gauges from continuous exposure to system pressure in hydraulic and industrial fluid systems. This isolator allows pressure to reach the gauge only when manually activated, thereby significantly increasing gauge life and improving measurement reliability.
In hydraulic applications where pressure fluctuations, pulsations, or continuous system pressure can damage gauges over time, the FGI-01 acts as a protective interface between the system and the pressure measuring instrument. By pressing the actuator, the operator can momentarily allow system pressure to reach the gauge for accurate reading.
This design reduces wear on sensitive gauge components and enhances overall safety in high-pressure hydraulic environments.
Technical Specifications
-
Product Type: Push to Read Gauge Isolator
-
Model: FGI-01
-
Brand: Fener
-
Function: Manual pressure isolation for gauges
-
Operation Type: Push-to-Activate
-
Application Compatibility: Hydraulic & Industrial Fluid Systems
-
Mounting Type: Inline gauge installation
-
Body Material: Industrial Grade Metal (as per model specification)
-
Operating Environment: Industrial / Hydraulic Applications
Key Features
-
Protects pressure gauges from constant system pressure
-
Push-to-read manual activation mechanism
-
Reduces gauge wear and failure
-
Suitable for high-pressure hydraulic systems
-
Compact and easy to install
-
Improves gauge accuracy and lifespan
-
Enhances operational safety
Typical Applications
-
Hydraulic Power Packs
-
Industrial Hydraulic Systems
-
CNC Machines
-
Test Benches
-
Pressure Monitoring Panels
-
Oil & Fluid Control Systems
Important Points to Consider Before Buying
-
Confirm pressure rating compatibility with your system
-
Verify connection size and thread type
-
Ensure compatibility with installed pressure gauge
-
Check installation space for push operation clearance
-
Confirm fluid compatibility (hydraulic oil or other media)
Why Buy From Us
-
Supply of genuine Fener hydraulic components
-
Technical guidance for correct isolator selection
-
Bulk order support for OEMs and manufacturers
-
Reliable dispatch across India
